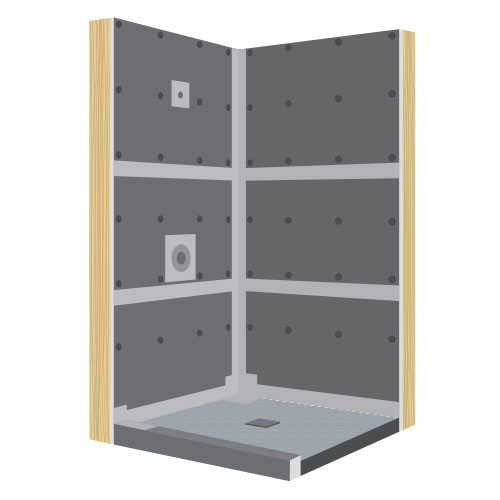

ARDEX TLT™ SHOWER BASES

Description

ARDEX TLT™ SHOWER BASES

Shower Bases for Shower Systems

  • Pre-sloped, waterproofed and designed to make tiled shower installations quicker and easier than traditional mud-based installations
  • Can easily be cut down or extended using dry pack mortar
  • All pans have a built-in drain assembly included

APPLICATION
The ARDEX TLT™ Shower Base is an all-in-one solution that sets new standards. It can be installed easily, quickly and securely. The technology is highly efficient and all system components are perfectly adapted to each other.

SIMPLY SECURE & WATERTIGHT
Thanks to sophisticated technology and high-quality materials, consumers will be able to enjoy a shower system which provides both high durability and excellent sealing properties. The use of adhesive foil with an integral wall/floor seal provides the shower element with a reliable seal.

MAXIMUM COMPRESSION STRENGTH
ARDEX TLT Shower Bases can be safely covered with any type of tile, flag or mosaic tiles in compliance with DIN EN 14411, as well as with natural stone, and its ability to withstand even high point loading means that a wheelchair can be supported without additional reinforcement. Small mosaic tiles ≥ 20 mm can be laid without any problem.

Standards

SystemOne™ ARDEX TLT™ Shower Systems Warranty



Technical Data ARDEX TLT™ Shower Bases

Center Drain Shower Bases
Dimensions Drain Placement
32″ x 60″ (81 cm x 122 cm) center
36″ x 48″ (91 cm x 122cm) center
36″ x 60″ (91 cm x 152 cm) center
48″ x 48″ (122 cm x 122 cm) center
48″ x 72″ (122 cm x 183 cm) center
72″ x 72″ (183 cm x 183 cm) center



Off-Center Drain Shower Bases
Dimensions Drain Placement
32″ x 60″ (81 cm x 152 cm) off-center
36″ x 60″ (91 cm x 152 cm) off-center



Product Overview ARDEX-TLT-Shower-Bases-Product-Overview

Shower Base with Integrated Drain Installation Guide

ARDEX_showerPanSquareDrain_inst_guide
