Description
ARDEX TLT™ WATERPROOFING ACCESSORIES
Waterproofing Accessories for Shower Systems
- A modified polyethylene (PEVA) core with a non-woven polypropylene on both sides
- Provides protection of the substrate from moisture penetration
- This waterproof membrane is 5-mil thick and has a water vapor permeance of 0.051 perms, when tested according to ASTM E96, using Procedure E at 90% relative humidity
INFORMATION ARDEX TLT™ WATERPROOFING ACCESSORIES

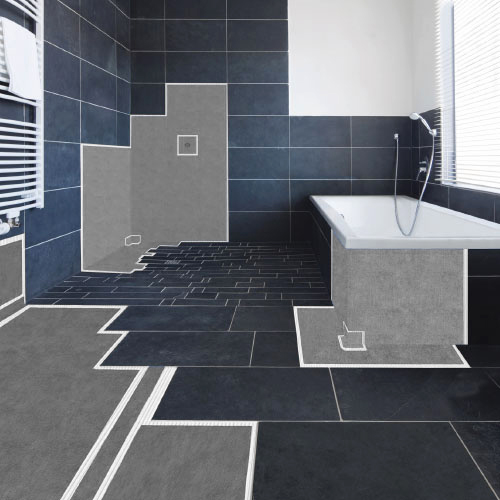

Ceramic and stone tiles are durable, easy to maintain and hygienic, representing ideal surface coverings in wet areas. However, since tiles and grout are not inherently waterproof, it is essential to protect the substrate from moisture penetration with the ARDEX TLT™ Waterproofing Accessories.
Key Features
- Waterproofing Membrane
- Seam Tape
- Mixing/Pipe Valve Seals
- Inside/Outside Corners
Waterproofing Membrane is a lightweight, polyethylene membrane for use under tile and stone surfaces in showers and wet area applications. It is also suitable for chemical-resistant flooring.
Seam Tape is made from the same lightweight, waterproof material as the waterproofing membrane and is for use over horizontal and vertical seams.
Mixing/Pipe Valve Seals are designed to seal pipe protrusions and are for use around supply lines to shower heads, hand held wands, jets, and spray and steam heads. They act as an anti-fracture membrane between substrates and hard surface coverings.
Inside/Outside Corners are constructed as a single piece from a seamless material that eliminates the potential of weak points in time-consuming jobsite-cutting techniques. They offer convenience and provide peace of mind knowing every corner is safe from water infiltration.
Technical Data ARDEX TLT™ Waterproofing Accessories
| Waterproofing Membrane | |||
| Width | Length | Area | Thickness |
| 3 ft. 3 in (1 m) | 32 ft. (10 m) | 108 ft.² (10 m²) | 5 mil |
| 3 ft. 3 in (1 m) | 98 ft. 5 in (30 m) | 323 ft.² (30 m²) | 5 mil |
| Seam Tape | ||
| Width | Length | Thickness |
| 4.7 in (12 cm) | 33 ft (10 m) | 5 mil |
| 4.7 in (12 cm) | 66 ft (20 m) | 5 mil |
| 4.7 in (12 cm) | 98 ft (30 m) | 5 mil |
| Corners | ||
| Description | Thickness | Degree |
| Outside Corner | 5 mil | 90°/135° |
| Inside Corner | 5 mil | 90°/135° |
| Mixing/Pipe Valve Seals | |
| Description | Thickness |
| Pipe Collar | 5 mil |
| Mixing Valve Collar | 5 mil |
| Squares 4″ x 4″ | 5 mil |
| Squares 5″ x 5″ | 5 mil |
