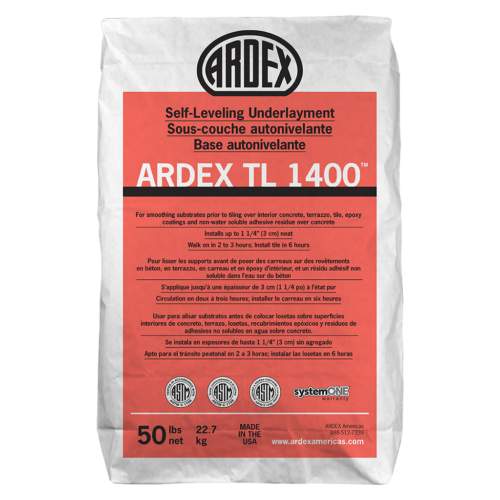

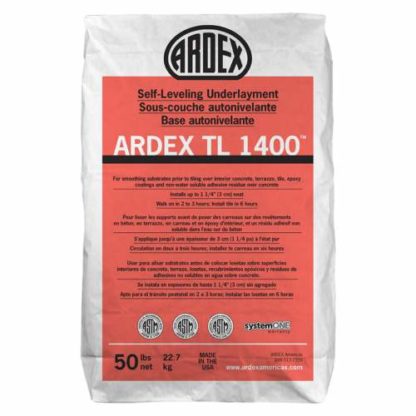

ARDEX TL 1400™

Description

ARDEX TL 1400™

Self-Leveling Underlayment

  • For smoothing substrates prior to tiling over interior concrete, terrazzo, tile, epoxy coatings and non-water-soluble adhesive residue over concrete
  • Installs up to 1 1/4″ (3 cm) neat
  • Walk on in 2 to 3 hours; install tile in 6 hours

The easy way to achieve an optimal smooth, flat surface for installing tile, especially when installing large and super format tile and stone!

ARDEX TL 1400™ is a blend of Portland cements, hydraulic cements and specialty polymers formulated to smooth substrates including concrete, terrazzo, tile, epoxy coatings and non-water soluble adhesive residue on concrete prior to installing tile and other floor coverings on, above and below grade.



Key Features

  • For smoothing substrates prior to tiling over interior concrete, terrazzo, tile, epoxy coatings and non-water-soluble adhesive residue over concrete
  • Installs up to 1 1/4″ (3 cm) neat
  • Can be tapered to meet existing elevations
  • Walk on in 2 to 3 hours; Install tile in 6 hours
  • Interior use only

TECHNICAL DATA ARDEX TL 1400™

Installation

Mixing Ratio:
5 quarts (4.75 L) of water per 50 lb. (22.7 kg) bag

Coverage:
25 sq. ft. per bag at 1/4” (2.3 sq. m at 6 mm). Coverage will vary depending on the texture of the surface being smoothed.

Performance

Flow Time: 10 minutes
Initial Set (ASTM C191): Approx. 30 minutes
Final Set (ASTM C191): Approx. 90 minutes
Compressive Strength (ASTM C109/mod – Air cure only): 4000 psi (280 kg/cm2) at 28 days
Flexural Strength (ASTM C348): 1000 psi (70 kg/cm2) at 28 days
Walkable: 2 to 3 hours
Install Flooring: Tile in 6 hours; other floor coverings see Installation of Flooring section in the Technical Data.
VOC: 0
Packaging: 50 lb. (22.7 kg) bag
Storage: Store in a cool, dry area. Do not leave bags exposed to sun.
Shelf Life: 1 year, if unopened
Warranty: ARDEX, L.P.Standard Limited Warranty applies. Also eligible for the ARDEX Tile and Stone Installation Systems SystemOne™ Warranty.

For complete product technical information, click the Downloads tab and open the Technical Data download.

Product overview

ARDEX-TL-1400-Product-Overview

Technical Data

ARDEX-TL-1400-Technical-Data

Safety Data Sheet

ARDEX-TL-1400-Safety-Data-Sheet

Specification

ARDEX-TL1400_CSI-FORMATTED-SECTION-03-54-16_-7-1-2021
