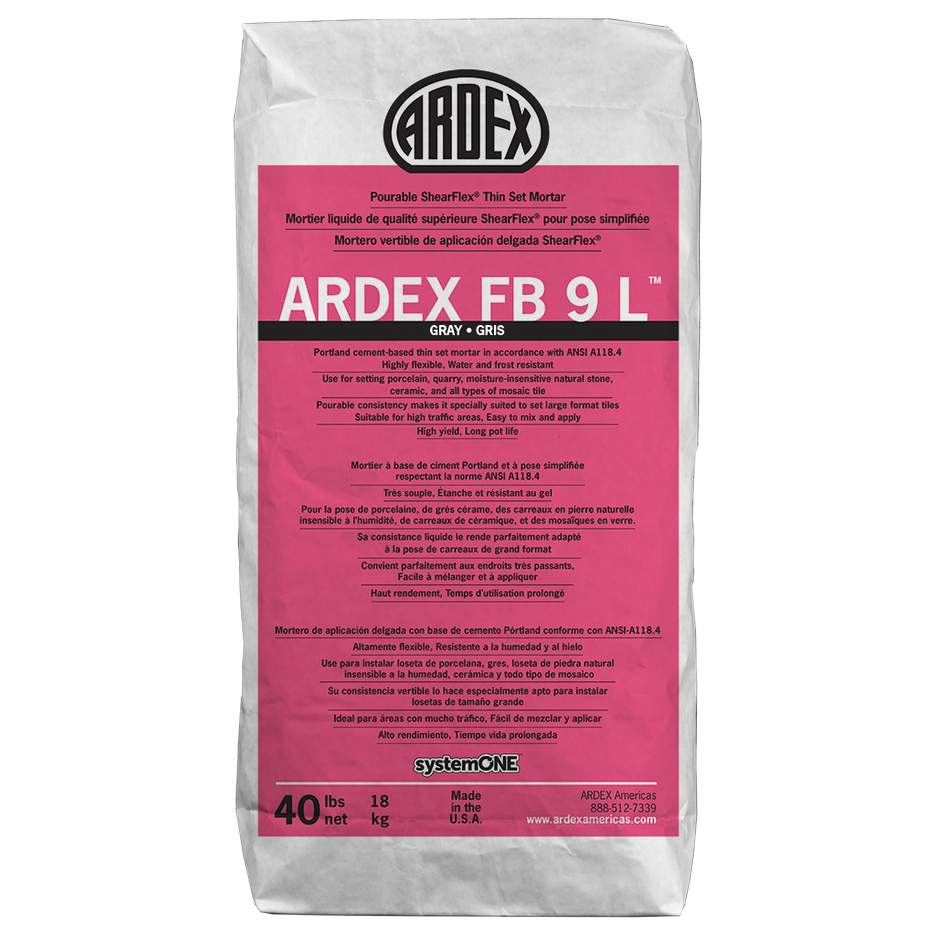

ARDEX FB 9 L™

Description

ARDEX FB 9 L™

Pourable ShearFlex® Mortar

  • Grout in just 6 hours
  • Excellent shear strength and flexibility
  • Coverage: 90 sq. ft. (8.36 sq. m)

ARDEX FB 9 LTM is a portland cement-based polymer modified mortar with a unique, very fluid, pourable consistency that is ideal for horizontal large format tile installations. Holds solid trowel lines and delivers full coverage eliminating the need for back buttering. Can be used over in floor heating systems on concrete subfloors.





Key Features

  • Portland cement-based thin set mortar in accordance with ANSI A118.4, ANSI A 118.11 and ANSI 118.15
  • Highly flexible
  • Water and frost resistant
  • Use for setting ceramic, porcelain, quarry tile, glass and porcelain mosaics, and moisture-insensitive natural stone tiles
  • Pourable consistency makes it specially suited to set large format tiles
  • Suitable for high traffic areas
  • Easy to mix and apply
  • High yield
  • Long pot life
  • Use for interior and exterior floors

Standards

SystemOneTM
Meets or Exceeds ANSI A 118.4
Meets or Exceeds ANSI A 118.11
Meets or Exceeds ANSI A 118.15
ISO Classification: C2 FTE S1

TECHNICAL DATA ARDEX FB 9 L™



Installation

Mixing Ratio:

5 – 5 3/4 qts. of water to one 40 lb. bag

*For smaller batches, use 2.5 to 3 parts powder to 1 part water

Coverage (Approx.):

90 sq. ft. per bag using a 1/4″ x 1/4″ Sq. Notch trowel

65 sq. ft. per bag using a 1/4″ x 3/8″ x 1/4″ Sq. Notch trowel

Performance

Open Time (70°F): Approx. 30 minutes
Working Time: 30 minutes
Pot Life: 3 hours
Time to Grout: Floors 6 hours
Adhesion Strength of Quarry Tiles: 300 psi after 28 days
Packaging: 40 lb. bag net weight
Storage: Store in a cool dry area. Do not expose bags to sun.
Shelf Life: 1 year If unopened
Warranty: ARDEX L.P. Standard Limited Warranty applies

For complete product technical information, click on the Downloads tab and open the Technical Data download.
